■ SPECIFICATION
Perm. Cable cross-section : 0.5~1.5㎟
Humidity : 10%~90% RH non-condensing
Protection Class : II

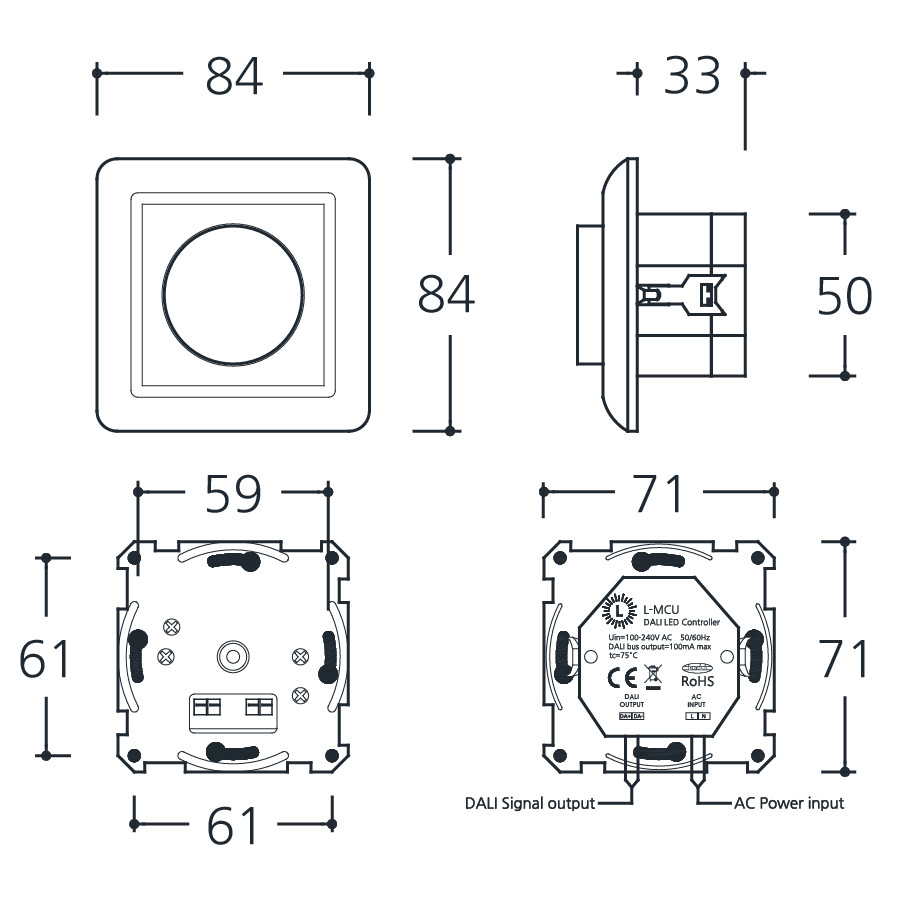

Hole size : Ø 60mm ~ 70mm
※ Max. 100 DALI ECGs on a DALI line can be controlled by 4 MCUs via broadcast (2 by AC mains, 2 by DALI bus).

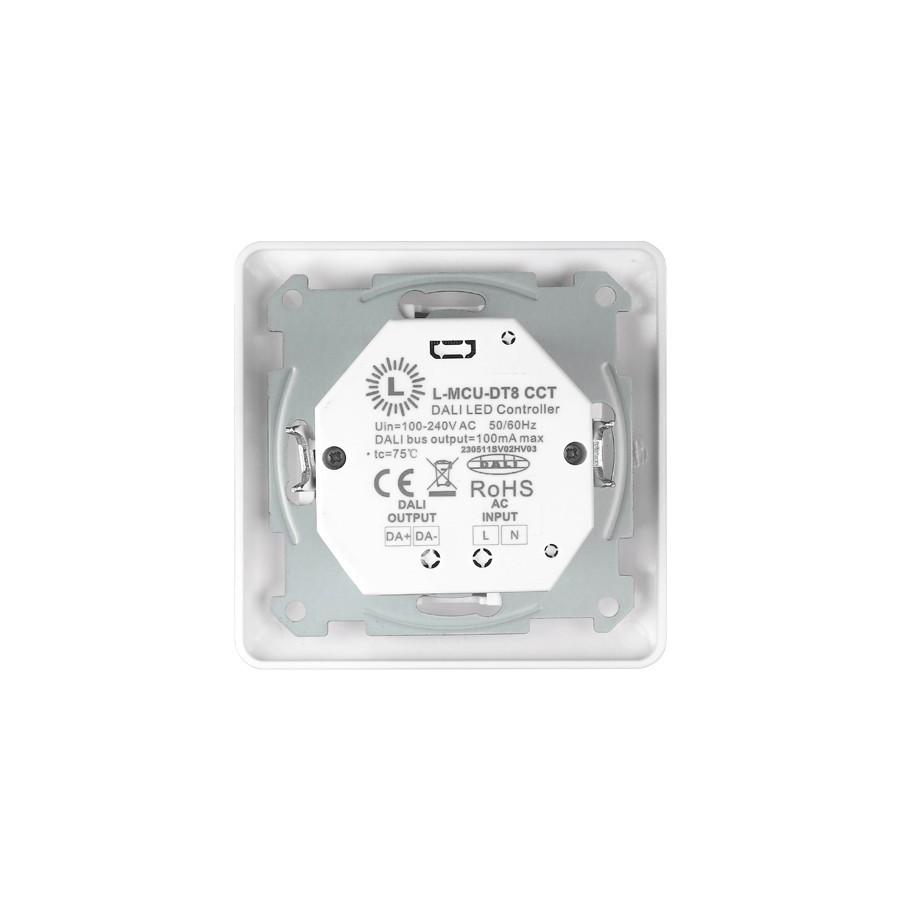

DALI Connection : DA+/DA-, max. 300m cable length,
DALI power supply output current max 100mA.
Rated Supply Voltage : 100~240V AC (50/60Hz)
Typ. Current : 27mA (@230V/50Hz/full load)
Max. input power : 3.70W
Typ. Power input on stand-by : 1.23W
Typ. Input current in no-load operation : 7mA
Mains surge capability : 1KV (Between L-N)
THD : 10% (@230V/50Hz/full load)
Time to light : 242mS (@230V/50Hz/full load)
Turn off time : 205mS (@230V/50Hz/full load)
Output Voltage Tolerance : 9~21V DC
Max. DALI devices per dimmer : 50
Dimming range : 1%~100%
DALI-Mode : DT8
DALI Current draw : 5mA
※ Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs.
※ Powered by DALI bus while not connected to AC mains.
※ Enables to control all devices on DALI line through broadcast
※ Enables to set and delete a minimum dimming level
Ambient Temperature(Ta) : 0 °C to + 50 °C
Max. casing Temperature(Tc) : 75 °C
Storage Temperature : -40 °C to +85 °C
Type of Protection : IP20
Weight : 110g
