■ SPECIFICATION
Relative humidity 8% to 80%
• Rotation sensitive
• Control single color

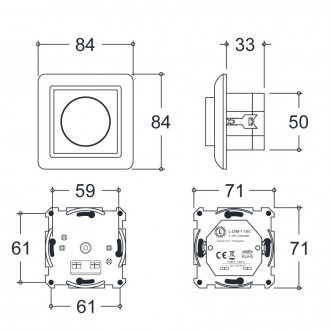

Hole size : Ø 60mm ~ 70mm
Output Signal : 1x(1-10V)
Output Current Max. 50 mA
Switching Voltage 100-240V AC
Switching Current Max. 10A
• Built-in power switch, switch up to 10A
• 1 channel 1-10V Signal output
• Enable to set different dim off signal voltage (0.5V-0.9V)
by potentiometer to match different suppliers 1-10V driver
Operating temperature 0-40°C
• Waterproof grade: IP20
